This rubber suction hose is often used in tank truck, storage truck and loading stations for transporting mineral oils, petroleum and fuel mixture with aromatic content up to 50%. With multiple plies of tire cord with antistatic steel wire, the fuel suction & discharge hose provides a constant working pressure of 145 psi at ambient temperature. Hose cover is made of abrasion, ozone and all weathers resistant synthetic rubber.

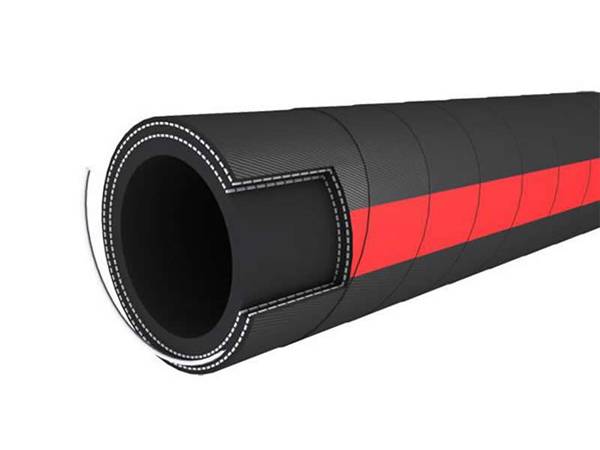

Fuel suction & discharge hose
Product description:
| I.D. (mm) | O.D. (mm) | Wall Thickness (mm) | Working Pressure (psi) | Burst Pressure (psi) | Min. Bend Radius | Weight (kg/m) |
|---|---|---|---|---|---|---|
| 19 | 29 | 5 | 145 | 435 | 76 | 61 |
| 25 | 35 | 5 | 145 | 435 | 100 | 61 |
| 32 | 43 | 5.5 | 145 | 435 | 128 | 61 |
| 38 | 49 | 5.5 | 145 | 435 | 152 | 61 |
| 51 | 63 | 6 | 145 | 435 | 204 | 61 |
| 63 | 75 | 6 | 145 | 435 | 252 | 61 |
| 76 | 89 | 6.5 | 145 | 435 | 304 | 61 |
| 102 | 118 | 8 | 145 | 435 | 408 | 61 |
| 127 | 143 | 8 | 145 | 435 | 572 | 40 |
| 152 | 168 | 8 | 145 | 435 | 760 | 40 |
| 203 | 223 | 10 | 145 | 435 | 1015 | 40 |
