Heavy-walled PVC suction & delivery hose for liquids and powders

Heavy duty PVC suction/discharge hose is tough, flexible and extremely durable under harsh working environments. Reinforced by semi-rigid and crush resistant PVC helix, PVC suction hose is extensively used in the suction and delivery of water, sewage, slurries and powers of agriculture, construction & industry applications.

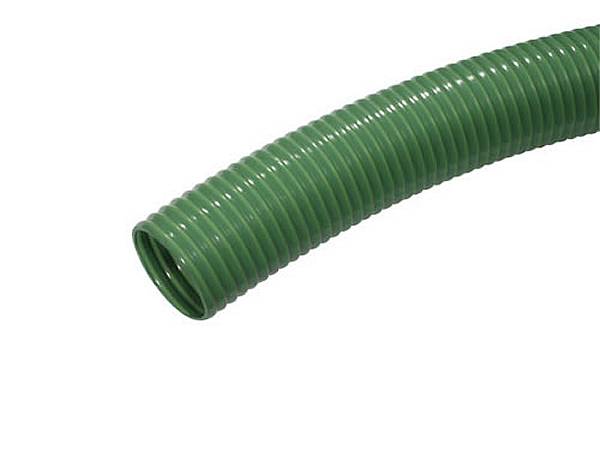

Heavy duty PVC suction hose in green color

Heavy duty PVC suction/discharge hose

Heavy duty PVC hose has outstanding resistance to the ozone and weathers degradation. And smooth inside wall minimize frictional loss. Heavy wall and reinforcement makes the hose workable under high operating pressure – up to 190 psi.

Heavy-walled PVC suction hose can be supplied in straight lengths or coils. The longest for straight hose will be 10 meter. Polished aluminum fittings are supplied.

Product description:
Tube: smooth PVC hose;
Reinforcement: crush-resistant PVC helix;
Operating temperature: -15°C to +65°C (+5°F to +149°F);
Operating pressure: up to 190 psi;
Hose size: 25.4 mm to 254 mm;
Length: 6 meter, 30 meter.

Heavy duty PVC suction hose
Internal Dia. (mm) External Dia. (mm) Wall Thickness (mm) Working Pressure (psi) Vacuum Mtrs (H2O) Min. bend radius (mm)
25.4 34.3 4.5 190 9 160
32.0 41.1 4.6 145 9 200
38.0 48.2 5.1 126 9 230
51.0 62.2 5.6 106 9 300
63.0 75.2 6.1 87 9 370
76.0 89.2 6.6 83 9 450
89.0 103 7.0 72.5 9 550
102.0 118 8.0 62 9 630
127.0 144.3 8.6 58 8 850
152.0 172.3 10.2 54 8 1100
203.0 226 11.5 48 8 2030
254.0 282 14.0 43.5 8 2540

Note: The pressures and vacuum ratings are measured at 21°C (70°F).
