EPDM suction/discharge hose
shade
EPDM suction hose consists of smooth EPDM tube and polyethylene helix construction in blue, red or yellow. Exterior polyethylene spiral contributes premium abrasion resistance, flexibility and long life expectancy for outdoor wet or dry applications. It allows for easy sliding over rough surfaces and easy handling.
Smooth EPDM tube has superior chemical resistance and can withstand extremely temperatures. It is an economical alternative of suction & discharge hose for slurry, septic handling, sewage, chemicals and fertilizers.
Polyethylene helix reinforced EPDM suction/discharge hose will handle full vacuum ratings and pressures up to 50 psi. Smooth EPDM hose is workable as a material handling hose, vacuum hose and ducting hose.
EPDM suction & discharge hoses are available in cam and groove, threaded, flanged, and other fittings.

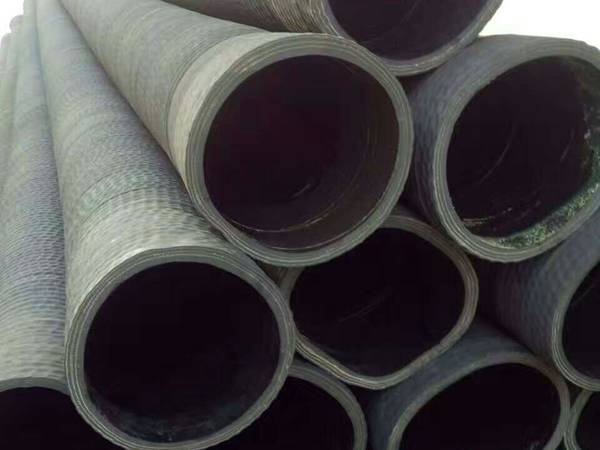

EPDM suction/discharge hose

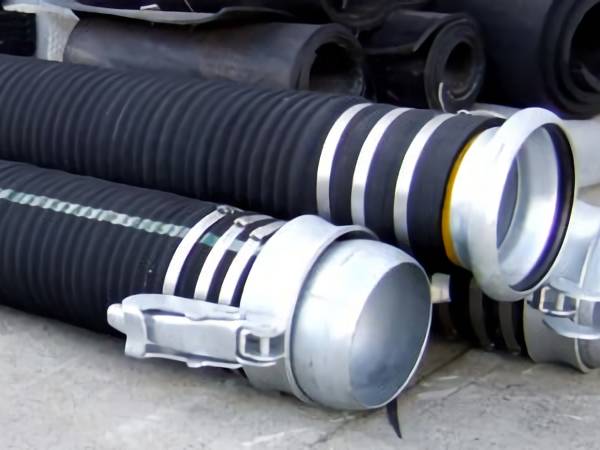

Cam & Groove End Fitting

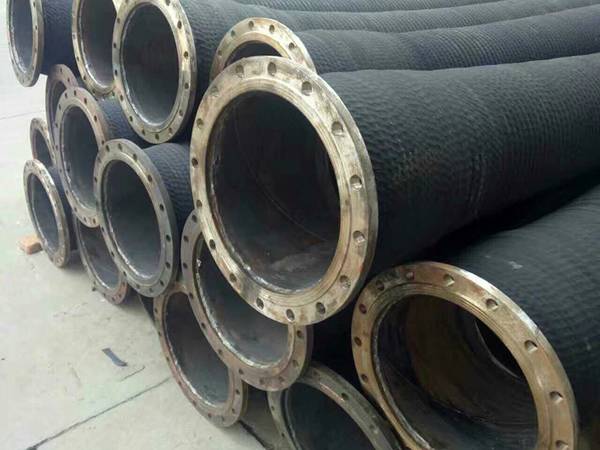

Flange Connection
Applications:
Suction and discharge of non-corrosive liquids for irrigation, construction, water, fertilizers and lasso acid solutions.
Cover:
Black EPDM Rubber Compound With Wrapped Impression - Abrasion And Ozone Resistant.
Reinforcement:
Multiple Nylon Fabric Ply Along With Helical Galvanised Steel Wire.
Tube:
Black Synthetic EPDM Rubber, Abrasion & Heat Resistant For Ash Particles Of High Kinetic Energy.
Working Pressure:
Constant Pressure:10 Bar (150PSI)
Temperature Range:
-104°F（-40°C）to 320°F (+160°C)
Specifications
| Series | ID(in.) | ID(mm) | OD(in.) | OD(mm) | Max WP(PSI) | Vacuum HG(in.) | Min.B.R | Weight(kh/m) |
| QL-50 | 1 | 25 | 1.38 | 35 | 150 | 30 | 4 | 0.70 |
| QL-100 | 1-1/4 | 32 | 1.65 | 42 | 150 | 30 | 5 | 0.83 |
| QL-150 | 1-1/2 | 38 | 1.89 | 48 | 150 | 30 | 6 | 0.95 |
| QL-200 | 2 | 51 | 2.40 | 61 | 150 | 30 | 8 | 1.25 |
| QL-250 | 2-1/2 | 63 | 2.95 | 75 | 150 | 27 | 10 | 1.79 |
| QL-300 | 3 | 76 | 3.46 | 88 | 150 | 27 | 12 | 2.14 |
| QL-350 | 3-1/2 | 90 | 4.02 | 102 | 150 | 27 | 14 | 2.71 |
| QL-400 | 4 | 102 | 4.49 | 114 | 150 | 27 | 16 | 3.02 |
| QL-450 | 5 | 127 | 5.55 | 141 | 150 | 24 | 25 | 4.73 |
| QL-500 | 6 | 152 | 6.54 | 166 | 150 | 24 | 30 | 5.97 |
| QL-550 | 8 | 203 | 8.70 | 221 | 150 | 21 | 40 | 9.81 |
| QL-600 | 10 | 254 | 10.71 | 272 | 150 | 18 | 50 | 13.44 |
| QL-650 | 12 | 305 | 12.87 | 327 | 150 | 18 | 61 | 18.66 |
