SAE 100R4 Suction Hose

SAE 100R4 suction hose is recommended for applications of delivering water, slurry, powder petroleum & water based hydraulic fluids in low pressure and vacuum service. Its reinforcement consists of two layers of textile braid and static helix wire. The wire is placed between the braids to reduce possibility of collapse and kick under vacuum or bending.

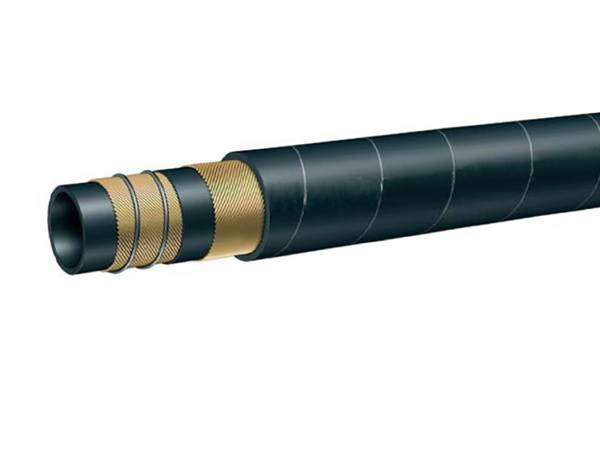

SAE 100r4 Suction Hose

Product description:

Inner tube: Black NBR (Class A);
Reinforcement: double layers of fiber and inserted spiral wire, static wire;
Cover: all weather, abrasion and ozone resistant synthetic rubber;
Operating temperature: -40°F to +200°F (-40°C to +93°C);
Operating pressure: 300 psi at ambient temperature;
Safety factor: 4:1;
Bore size: 3/4" to 4";
Length: up to 50 ft;
Package: 50 ft/coil, poly wrapped.

SAE 100R4 Suction Hose
Hose I.D. (in.)	Hose O.D. (in.)	Rated W.P. (psi)	Min. Burst (psi)	Vacuum (in./hg.)	Min. Bend Radius (in.)	Weight (lbs/ft.)
3/4	1.24	300	1,200	25	5.0	0.42
1	1.53	250	1,000	25	6.0	0.57
1-1/4	1.78	200	800	25	8.0	0.67
1/12	2.07	150	600	25	10.0	0.84
2	2.54	100	400	25	12.0	1.03
2-1/2	3.12	62	250	25	14.0	1.70
3	3.62	56	225	25	18.0	1.98
3-1/2	4.14	45	180	25	21.0	2.34
4	4.70	35	140	25	24.0	3.03
